Stranding Dies

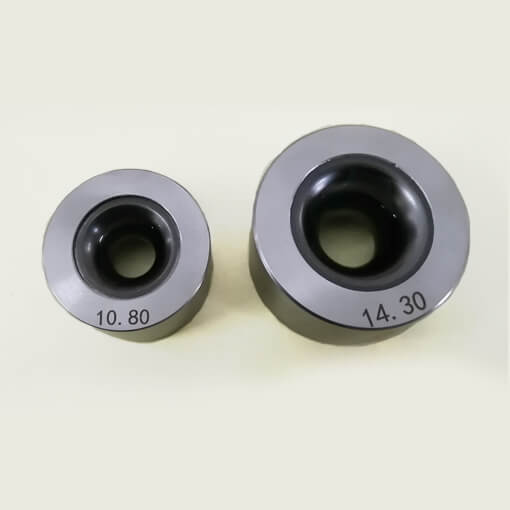

Stranding Dies are used to guiding or organize wire through the wire press and stranding machine. The winding cartridges of the double-wire and single-wire beaming machines are inside the machine, and the dies are fixed at the entrance to the machine to collect wire. We can offer different materials: Tungsten carbide/PCD/Nano coated

Brand:

SOMEBETTER

Usage:

Aluminum, copper and other non-ferrous cable, dry-drawing of stainless steel, welding wire drawing and tube drawing.

Size:

Hole 1.00-35.00mm (larger or smaller size customized according to customer requirements)

Material:

Stainless steel outer case+ Tungsten carbide/PCD/Nano coating die blank

SEND EMAIL SEND INQUIRY

Product Introduction

Application

Parameter Table

Product Introduction

Feature:

1. The hole type does not have sharp protrusions.

2. The entrance is wide enough to receive a wire from the wire split plate

3. The bearing length for coaxial contemporaries is usually longer so that the wire remains in the correct position when entering the machine.

Advantages:

1.Minimize die wear for huge potential savings in raw material cost

2.Lower die pull resistance for higher energy efficiency

3.Nano Diamond Coated Extend die life at least 10x longer than tungsten carbide dies.

4.Superior surface finish minimizes wire deformation forces for optimum cable conductivity and reduced fines and dust

5.High-quality tungsten steel die blank with good toughness, high hardness and strong wear resistance

6.Diamond coating adhesion, good wear characteristics, and nano diamond coating surface high finish, low coefficient of friction and easy grinding polishing

7.Fast delivery time at about 7-10 days after receive your payments

Application

Stranding Dies Application:

Ideal for stranded cable used in electrical transmission. May also be used for large diameter wire drawing and tube drawing.

Parameter Table

OD*Height(mm)	Hole Diameter(mm)-d	Reduction angle(°)-α	Reduction Zone Height(mm)-L1	Bearing Length(mm)-L	β(°)
20*17	4.9	28	5.5	1.5	65
22*18	7.2	28	5.5	2.0	65
25*18	8.2	28	5.5	2.0	65
30*18	11.5	28	7	2.5	70
30*18	13	28	7	2.5	70
35*22	15.9	28	7	2.5	70
38*22	18.3	28	7	3.0	70

Shapes/drawing Reference
